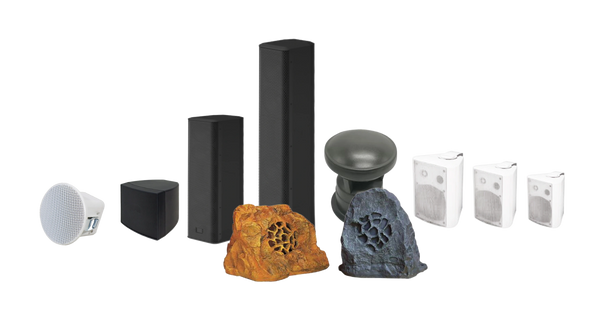

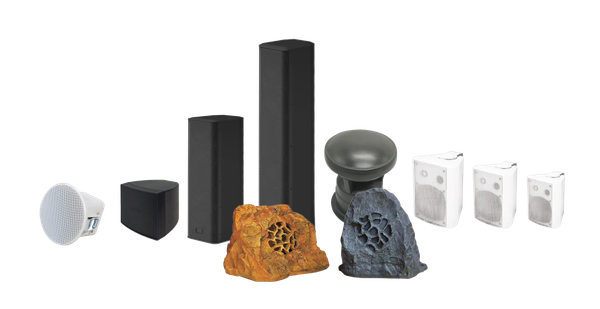

SPEAKER SERIES
MegaPA’s PA speakers deliver powerful, clear sound performance designed for professional audio applications. Built with high-quality components and durable enclosures, they ensure reliable operation in various environments. With precise sound dispersion and flexible installation options, MegaPA speakers are ideal for events, venues, and public address systems.
SPEAKER PA SERIES
TP41
Compact coaxial full-range speaker
4” mid-bass + 1” silk dome tweeter
Frequency 70Hz–20kHz (-3dB), 65Hz (-10dB)
Sensitivity 89dB, Max SPL 109dB peak
Rated power 25W, short-term 100W
Speech clarity A-grade, full and deep
Sturdy PVC enclosure, compact bracket
Coverage 90°×90°, 8 Ohm impedance
Connector Phoenix 4-pin terminal block
Size/Weight 129×129×140mm, 0.9kg

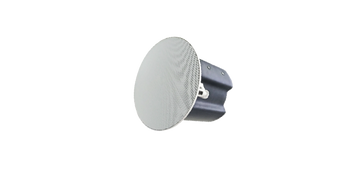

C51A
Slim bezel design with large metal box
5” mid-bass + 1” silk dome tweeter
Speech clarity A-grade, full and deep
Speaker config 5” + 1” tweeter setup
Frequency range 80Hz–20kHz standard
Rated power 40W, max short-term 160W
Impedance 8Ω, sensitivity 89dB
Cut-out size 205mm diameter
Enclosure PVC plastic and Q275 carbon steel
Size/Weight 239×239×230mm, 3.2kg

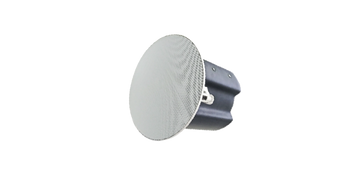

C65A
Slim bezel, large-volume metal box
6.5” mid-bass + 1” silk dome tweeter
Speech clarity A-grade, full and thick
Speaker config 6.5” + 1” tweeter setup
Frequency range 80Hz–20kHz standard
Rated power 40W, max short-term 160W
Impedance 8Ω, sensitivity 89dB
Cut-out size 205mm diameter
Enclosure PVC plastic and Q275 steel
Size/Weight 264×239mm, 3.2kg
BS-030B
Slim bezel, large-volume metal box
6.5” mid-bass + 1” silk dome tweeter
Speech clarity A-grade, full and thick
Speaker config 6.5” + 1” tweeter setup
Frequency range 80Hz–20kHz standard
Rated power 40W, max short-term 160W
Impedance 8Ω, sensitivity 89dB
Cut-out size 205mm diameter
Enclosure PVC plastic and Q275 steel
Size/Weight 264×239mm, 3.2kg
BS-030GA
Slim bezel, large-volume metal box
6.5” mid-bass + 1” silk dome tweeter
Speech clarity A-grade, full and thick
Speaker config 6.5” + 1” tweeter setup
Frequency range 80Hz–20kHz standard
Rated power 40W, max short-term 160W
Impedance 8Ω, sensitivity 89dB
Cut-out size 205mm diameter
Enclosure PVC plastic and Q275 steel
Size/Weight 264×239mm, 3.2kg
BS-030
Slim bezel, large-volume metal box
6.5” mid-bass + 1” silk dome tweeter
Speech clarity A-grade, full and thick
Speaker config 6.5” + 1” tweeter setup
Frequency range 80Hz–20kHz standard
Rated power 40W, max short-term 160W
Impedance 8Ω, sensitivity 89dB
Cut-out size 205mm diameter
Enclosure PVC plastic and Q275 steel
Size/Weight 264×239mm, 3.2kg
BS-030A
Slim bezel, large-volume metal box
6.5” mid-bass + 1” silk dome tweeter
Speech clarity A-grade, full and thick
Speaker config 6.5” + 1” tweeter setup
Frequency range 80Hz–20kHz standard
Rated power 40W, max short-term 160W
Impedance 8Ω, sensitivity 89dB
Cut-out size 205mm diameter
Enclosure PVC plastic and Q275 steel
Size/Weight 264×239mm, 3.2kg
BS-190C
Slim bezel, large-volume metal box
6.5” mid-bass + 1” silk dome tweeter
Speech clarity A-grade, full and thick
Speaker config 6.5” + 1” tweeter setup
Frequency range 80Hz–20kHz standard
Rated power 40W, max short-term 160W
Impedance 8Ω, sensitivity 89dB
Cut-out size 205mm diameter
Enclosure PVC plastic and Q275 steel
Size/Weight 264×239mm, 3.2kg
BS-020A
Slim bezel, large-volume metal box
6.5” mid-bass + 1” silk dome tweeter
Speech clarity A-grade, full and thick
Speaker config 6.5” + 1” tweeter setup
Frequency range 80Hz–20kHz standard
Rated power 40W, max short-term 160W
Impedance 8Ω, sensitivity 89dB
Cut-out size 205mm diameter
Enclosure PVC plastic and Q275 steel
Size/Weight 264×239mm, 3.2kg
BS-020B
Slim bezel, large-volume metal box
6.5” mid-bass + 1” silk dome tweeter
Speech clarity A-grade, full and thick
Speaker config 6.5” + 1” tweeter setup
Frequency range 80Hz–20kHz standard
Rated power 40W, max short-term 160W
Impedance 8Ω, sensitivity 89dB
Cut-out size 205mm diameter
Enclosure PVC plastic and Q275 steel
Size/Weight 264×239mm, 3.2kg
BS-774B
Slim bezel, large-volume metal box
6.5” mid-bass + 1” silk dome tweeter
Speech clarity A-grade, full and thick
Speaker config 6.5” + 1” tweeter setup
Frequency range 80Hz–20kHz standard
Rated power 40W, max short-term 160W
Impedance 8Ω, sensitivity 89dB
Cut-out size 205mm diameter
Enclosure PVC plastic and Q275 steel
Size/Weight 264×239mm, 3.2kg
BS-774W
Slim bezel, large-volume metal box
6.5” mid-bass + 1” silk dome tweeter
Speech clarity A-grade, full and thick
Speaker config 6.5” + 1” tweeter setup
Frequency range 80Hz–20kHz standard
Rated power 40W, max short-term 160W
Impedance 8Ω, sensitivity 89dB
Cut-out size 205mm diameter
Enclosure PVC plastic and Q275 steel
Size/Weight 264×239mm, 3.2kg

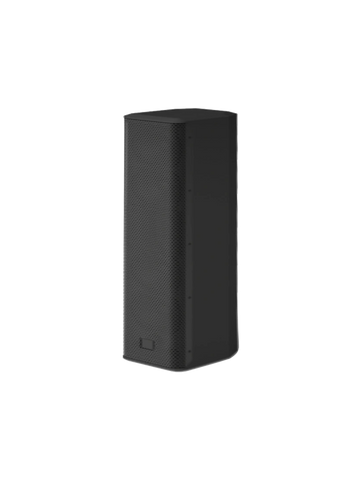

S42T
Speaker config 2×4” mid-bass + 1” tweeter
Frequency response 70Hz–20kHz (-3dB)
Sensitivity 88dB (1m, 1W standard)
Max SPL 102dB/113dB peak output
Rated power 70W, max 320W short-term
Coverage 90°×90° uniform dispersion
Nominal impedance 4 Ohm standard
Connector 2-pin connection terminal
Enclosure size 170×130×360mm (W×D×H)
Net weight 3kg total
S42
Speaker config 2×4” mid-bass + 1” tweeter
Frequency response 70Hz–20kHz (-3dB)
Sensitivity 88dB (1m, 1W standard)
Max SPL 107dB/113dB peak output
Rated power 80W, max 320W short-term
Coverage 90°×90° uniform dispersion
Nominal impedance 4 Ohm standard
Connector 4-pin connection terminal
Enclosure size 170×130×360mm (W×D×H)
Net weight 3kg total

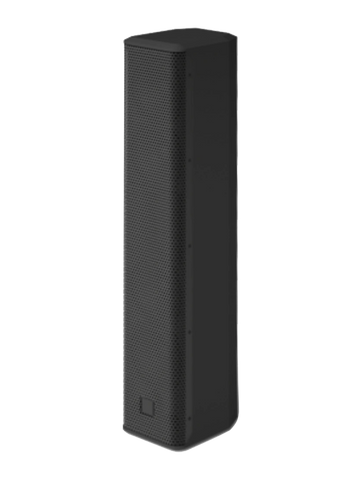

R44
Speaker config Full-range 4×4” drivers
Wiring method 4-position terminal block
Frequency response 80Hz–20kHz standard
Sensitivity 95dB (1W/1m reference)
Rated power 120W (IEC standard test)
Max SPL 121dB peak output
Nominal impedance 8 Ohm standard
Coverage 120°×90° (Horizontal×Vertical)
Cabinet size 135×560×160mm (W×H×D)
Net weight 5.3kg total
R44T
Drivers 4×4.5” + 2×1” neodymium coil
Rated power 140W, peak 560W total
Impedance 8Ω, sensitivity 88dB (1W/1m)
Max SPL 110dB, peak SPL 116dB output
Frequency (-3dB) 160Hz–20kHz range
Frequency (-10dB) 150Hz–20kHz range
Coverage 160°×10° dispersion angle
Lightweight neodymium magnet system
High clarity and dynamic vocal range
Size/Weight 148×640×150mm, 5.5kg
S44
Speaker config 4×4” full-range + 44mm tweeter
Rated power 150W, impedance 8Ω
Peak power 600W maximum output
Sensitivity 88dB (1W/1m standard)
Max SPL 110dB/116dB peak performance
Frequency (-3dB) 160Hz–20kHz response
Frequency (-10dB) 150Hz–20kHz extended
Coverage angle 150°×30° dispersion
Cabinet size 170×130×709mm (W×D×H)
Net weight 8kg total
