Controllable power manager
MR SERIES
- Power manager is a compact and powerful intelligent power manager based on ARM Cortex-M0 core processor.
- Built-in RS-485 interface and support multi-device cascade control, the device can be set and managed through PC host or central control device.

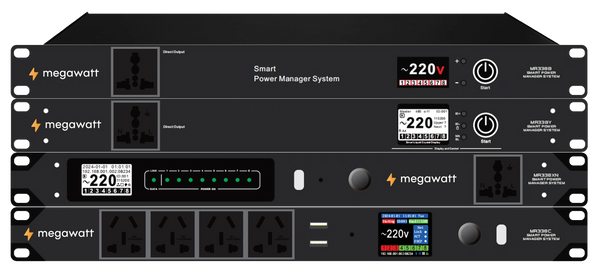

MR SERIES
MR338B
Operating voltage ~220V 50Hz, max 20A
Output 8 controllable + 1 direct channel
Startup delay 0–240s adjustable range
Shutdown delay 0–240s adjustable range
Max load per channel up to 13A
Voltage protection 170–190V, 240–260V
Display 128×64 LED matrix screen
Scene mode 8 customizable scene settings
Communication RJ45 (RS-485, RS-232 ports)
Size/Weight 482×190×45mm, 2.7kg
MR338Y
Operating voltage ~220V 50Hz standard
Output 8 controlled + 1 direct channel
Startup delay 0–240s adjustable
Shutdown delay 0–240s adjustable
Max load 30A total, 13A per channel
Display 128×64 LED, voltage, RS-485 status
Voltage protection under 170V, over 260V
Scene mode 8 customizable scene modes
Communication RJ45 (RS-485 network)
Size/Weight 482×290×45mm, 4.4kg
MR338XN
Operating voltage ~220V 50Hz standard
Output 8 controlled + 1 direct channel
Startup delay 0–240s adjustable range
Shutdown delay 0–240s adjustable range
Max load 30A total, 13A per channel
Display 128×64 LED, voltage and RS-485
Voltage protection under 170V, over 260V
Scene mode 8 customizable scene modes
Communication RJ45 (IP, RS-485 network)
Size/Weight 482×290×45mm, 4.4kg
MR338C
Operating voltage ~220V 50Hz standard
Output 3 sockets, 8 control, 4 direct, 2 USB
Startup delay 0–240s adjustable range
Shutdown delay 0–240s adjustable range
Max load 40A/60A @220V (2 versions)
Display Smart LED, voltage, IP, channel status
Voltage protection under 170V, over 260V
Timer mode 8 schedules within one week
Scene mode 8 customizable scenes
Size/Weight 482×290×45mm, 4.4kg
