AMPLIFIER PROFESSIONAL SERIES
MG SERIES
MG SERIES
MG SERIES
High Efficiency, Low Heat Dissipation, Reliable Durability
Perfect for line array speaker systems, suitable for bars, KTV, entertainment venues, and large concerts.
MW SERIES
MG SERIES
MG SERIES
Equipped with Over-Temperature Power Limit Function - Capable of Stable Driving at 2 Ohms
Club, KTV, entertainment, meeting rooms, theatres, auditoriums, and multifunctional halls where high-fidelity sound performance is required.

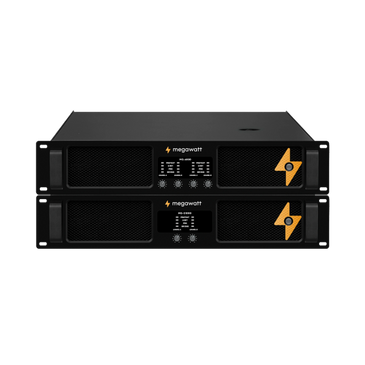

MG SERIES
High Efficiency, Low Heat Dissipation, Reliable Durability

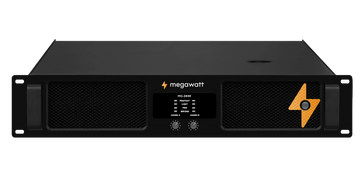

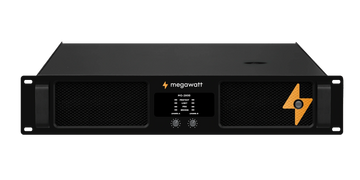

MG-2800
2CH Class D Amp, 2U rack, 800W @ 8Ω
1600W @ 4Ω, 2200W @ 2Ω
Bridge: 3200W @ 8Ω, 4600W @ 4Ω
Freq: 5Hz–20kHz, ±1dB
THD+N: <0.05%, Slew rate: 20V/μs
Damping >500, S/N ratio >110dB
Input Imp: 20KΩ bal / 10KΩ unbal
Gain: 20–41dB (8 levels)
Input: XLR / Output: Speakon
Size: 483×90×320mm
MG-21000
2CH Class D Amp, 2U rack, 1000W @ 8Ω
1800W @ 4Ω, 2520W @ 2Ω
Bridge: 3600W @ 8Ω, 5000W @ 4Ω
Freq: 5Hz–20kHz, ±1dB
THD+N: <0.05%, Slew rate: 20V/μs
Damping >500, S/N ratio >110dB
Input Imp: 20KΩ bal / 10KΩ unbal
Gain: 20–41dB (8 levels)
Input: XLR / Output: Speakon
Size: 483×90×320mm
MG-21300
2CH Class D Amp, 2U rack, 1300W @ 8Ω
2350W @ 4Ω, 3300W @ 2Ω
Bridge: 4700W @ 8Ω, 6600W @ 4Ω
Freq: 5Hz–20kHz, ±1dB
THD+N: <0.05%, Slew rate: 20V/μs
Damping >500, S/N ratio >110dB
Input Imp: 20KΩ bal / 10KΩ unbal
Gain: 20–41dB (8 levels)
Input: XLR / Output: Speakon
Size: 483×90×320mm

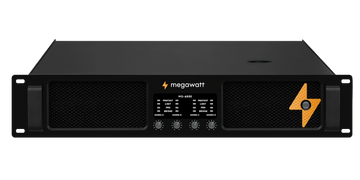

MG-4800
4CH Class D Amp, 2U, 800W @ 8Ω
1450W @ 4Ω, 2000W @ 2Ω
Bridge: 3850W @ 8Ω, 4000W @ 4Ω
Freq: 5Hz–20kHz, ±1dB
THD+N: <0.05%, Slew: 20V/μs
Damping >500, S/N >110dB
Input Imp: 20KΩ bal / 10KΩ unbal
Gain: 20–41dB in 8 steps
Input: XLR / Output: Speakon
Size: 483×90×320mm
MG-41000
4CH Class D Amp, 2U, 1000W @ 8Ω
1800W @ 4Ω, 2520W @ 2Ω
Bridge: 3600W @ 8Ω, 5000W @ 4Ω
Freq: 5Hz–20kHz, ±1dB
THD+N: <0.05%, Slew: 20V/μs
Damping >500, S/N >110dB
Input Imp: 20KΩ bal / 10KΩ unbal
Gain: 20–41dB in 8 steps
Input: XLR / Output: Speakon
Size: 483×90×320mm
MG-41300
4CH Class D Amp, 2U, 1300W @ 8Ω
2350W @ 4Ω, 3300W @ 2Ω
Bridge: 4700W @ 8Ω, 6600W @ 4Ω
Freq: 5Hz–20kHz, ±1dB
THD+N: <0.05%, Slew: 20V/μs
Damping >500, S/N >110dB
Input Imp: 20KΩ bal / 10KΩ unbal
Gain: 20–41dB in 8 steps
Input: XLR / Output: Speakon
Size: 483×90×320mm

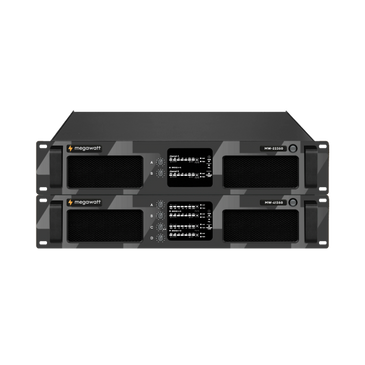

MW SERIES
Equipped with Over-Temperature Power Limit Function - Capable of Stable Driving at 2 Ohms
MW-2800
2CH TD Amp, 2U rack, 800W @ 8Ω
1600W @ 4Ω, 2000W @ 2Ω
Bridge: 3200W @ 8Ω, 4000W @ 4Ω
Freq: 6.8Hz–34kHz, THD <0.1%
THD 1kHz: <0.05%, S/N >112dBA
Damping ≥2000, Crosstalk >70dB
Gain: 23–44dB selectable
Input: 20KΩ bal / 10KΩ unbal
Input: 3-pin XLR balanced
Output: NEUTRIK Speakon
MW-21000
2CH TD Amp, 2U rack, 1000W @ 8Ω
1800W @ 4Ω, 2300W @ 2Ω
Bridge: 3500W @ 8Ω, 4500W @ 4Ω
Freq: 6.8Hz–34kHz, THD <0.1%
THD 1kHz: <0.05%, S/N >112dBA
Damping ≥2000, Crosstalk >70dB
Gain: 23–44dB selectable
Input: 20KΩ bal / 10KΩ unbal
Input: 3-pin XLR balanced
Output: NEUTRIK Speakon

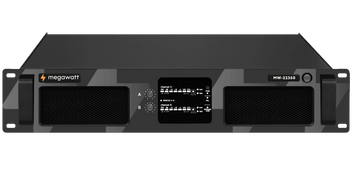

MW-21350
2CH TD Amp, 2U rack, 1350W @ 8Ω
2100W @ 4Ω, 2500W @ 2Ω
Bridge: 4200W @ 8Ω, 5000W @ 4Ω
Freq: 6.8Hz–34kHz, THD <0.1%
THD 1kHz: <0.05%, S/N >112dBA
Damping ≥2000, Crosstalk >70dB
Gain: 23–44dB selectable
Input: 20KΩ bal / 10KΩ unbal
Input: 3-pin XLR balanced
Output: NEUTRIK Speakon
MW-21500
2CH TD Amp, 2U rack, 1500W @ 8Ω
2540W @ 4Ω, 2800W @ 2Ω
Bridge: 5080W @ 8Ω, 5530W @ 4Ω
Freq: 6.8Hz–34kHz, THD <0.1%
THD 1kHz: <0.05%, S/N >112dBA
Damping ≥2000, Crosstalk >70dB
Gain: 23–44dB selectable
Input: 20KΩ bal / 10KΩ unbal
Input: 3-pin XLR balanced
Output: NEUTRIK Speakon
MW-21800
2CH TD Amp, 2U rack, 1800W @ 8Ω
3100W @ 4Ω, 4600W @ 2Ω
Bridge: 6200W @ 8Ω, 9200W @ 4Ω
Freq: 6.8Hz–34kHz, THD <0.1%
THD 1kHz: <0.05%, S/N >112dBA
Damping ≥2000, Crosstalk >70dB
Gain: 23–44dB selectable
Input: 20KΩ bal / 10KΩ unbal
Input: 3-pin XLR balanced
Output: NEUTRIK Speakon

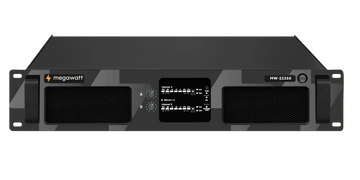

MW-22350
2CH TD Amp, 2U rack, 2350W @ 8Ω
4400W @ 4Ω, 7000W @ 2Ω
Bridge: 8800W @ 8Ω, 14000W @ 4Ω
Freq: 6.8Hz–34kHz, THD <0.1%
THD 1kHz: <0.05%, S/N >112dBA
Damping ≥2000, Crosstalk >70dB
Gain: 23–44dB selectable
Input: 20KΩ bal / 10KΩ unbal
Input: 3-pin XLR balanced
Output: NEUTRIK Speakon
MW-4600
4CH TD Amp, 2U, 600W ×4 @ 8Ω
1250W ×4 @ 4Ω, 1500W ×4 @ 2Ω
Bridge: 2500W @ 8Ω, 3000W @ 4Ω
Freq: 6.8Hz–34kHz, THD <0.1%
THD 1kHz: <0.05%, S/N >112dBA
Damping ≥2000, Crosstalk >70dB
Gain: 23–44dB, 8 selectable steps
Input: 20KΩ bal / 10KΩ unbal
In: 3-pin XLR / Out: NEUTRIK
Size: 2U rackmount standard
MW-4800
4CH TD Amp, 2U, 800W ×4 @ 8Ω
1600W ×4 @ 4Ω, 2000W ×4 @ 2Ω
Bridge: 3200W @ 8Ω, 4000W @ 4Ω
Freq: 6.8Hz–34kHz, THD <0.1%
THD 1kHz: <0.05%, S/N >112dBA
Damping ≥2000, Crosstalk >70dB
Gain: 23–44dB, 8 selectable steps
Input: 20KΩ bal / 10KΩ unbal
In: 3-pin XLR / Out: NEUTRIK
Size: 2U rackmount standard
MW-41000
4CH TD Amp, 2U, 1000W ×4 @ 8Ω
1800W ×4 @ 4Ω, 2300W ×4 @ 2Ω
Bridge: 3500W @ 8Ω, 4500W @ 4Ω
Freq: 6.8Hz–34kHz, THD <0.1%
THD 1kHz: <0.05%, S/N >112dBA
Damping ≥2000, Crosstalk >70dB
Gain: 23–44dB, 8 selectable steps
Input: 20KΩ bal / 10KΩ unbal
In: 3-pin XLR / Out: NEUTRIK
Size: 2U rackmount standard
MW-41350
4CH TD Amp, 2U, 1350W ×4 @ 8Ω
2100W ×4 @ 4Ω, 2500W ×4 @ 2Ω
Bridge: 4200W @ 8Ω, 5000W @ 4Ω
Freq: 6.8Hz–34kHz, THD <0.1%
THD 1kHz: <0.05%, S/N >112dBA
Damping ≥2000, Crosstalk >70dB
Gain: 23–44dB, 8 selectable steps
Input: 20KΩ bal / 10KΩ unbal
In: 3-pin XLR / Out: NEUTRIK
Size: 2U rackmount standard

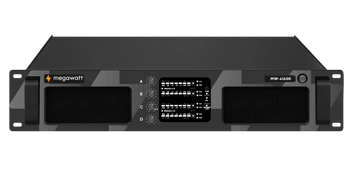

MW-41600
4CH TD Amp, 2U, 1600W ×4 @ 8Ω
2600W ×4 @ 4Ω, 2900W ×4 @ 2Ω
Bridge: 5150W @ 8Ω, 5600W @ 4Ω
Freq: 6.8Hz–34kHz, THD <0.1%
THD 1kHz: <0.05%, S/N >112dBA
Damping ≥2000, Crosstalk >70dB
Gain: 23–44dB, 8 selectable steps
Input: 20KΩ bal / 10KΩ unbal
In: 3-pin XLR / Out: NEUTRIK
Size: 2U rackmount standard
